How To Easily Build And Support Tables In Figma

The table is one of the most painful components designers have to deal with in their daily design lives. The table element is often a complex combination of text components, lines, rectangles, icons, and more. It soon may become a nightmare to work with, especially if you also want to support different screen resolutions, change the order of columns, and use real-life content.

In my projects, approximately half of the user interface designs I am working on are tables. This is why in this article, I’d like to share my approach to managing tables in Figma in an easier, more streamlined way.

I’m not a fan of long reads with too many unnecessary details, so I’ll “jump” into the subject right away. My guide consists of several parts; thus, you can stop reading at any point when you understand that what you have learned so far covers your needs at the moment, and you can go back/or jump forward to any section when you want to refresh your memory or learn about the more complex workflows. Let’s go!

Cells And Table Structure #

I often use the Ant Design System in my projects. Let’s take their table components as an example.

To start, we need to make only two simple components in Figma:

  • a head cell,
  • a row cell.

Now we have to set the space between the cells and create the components: Alt/Option + Ctrl/Cmd + K.

Useful tip: I have used zero spacing in the example below, but if you need vertical lines, use 1 px.

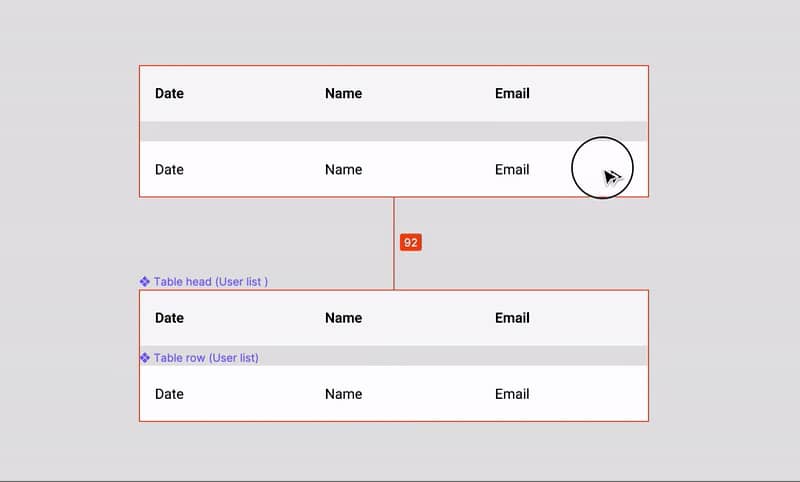

Play: Create the table head and the table row components.
Create the table head and the table row components.

Useful tip: I recommend naming the components on every level. Organise everything early, organise everything thoroughly!

A screenshot showing the naming of the components.
Naming the components. (Large preview)

How to create the table lines? Start here:

  • press and hold Alt/Option + Shift + mouse left for copying,
  • and Ctrl/CmdD to repeat the last action in Figma.

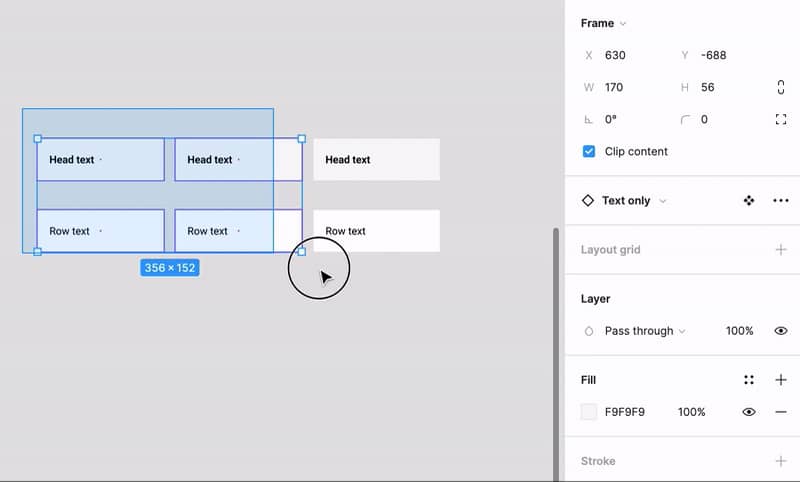

Play: Copying and arranging the table rows.
Copying and arranging the table rows.

And now, let’s say that we need a table with the following parameters:

  • horizontal lines between the rows: 1 px, blue color;
  • green colored stroke (table border);
  • corner radius: 15 px.
A screenshot showing the process of styling the table border, the row lines, and setting the table corner radius
Styling the table border, the row lines, and the table corner radius. (Large preview)

How did I do it? Here are the steps:

  1. group the table row elements into a single frame;
  2. set corners’ radius to 15 px;
  3. set outline stroke to 1 px#49E36B;
  4. set frame fill color to #278EEE.
